SHEARING
________

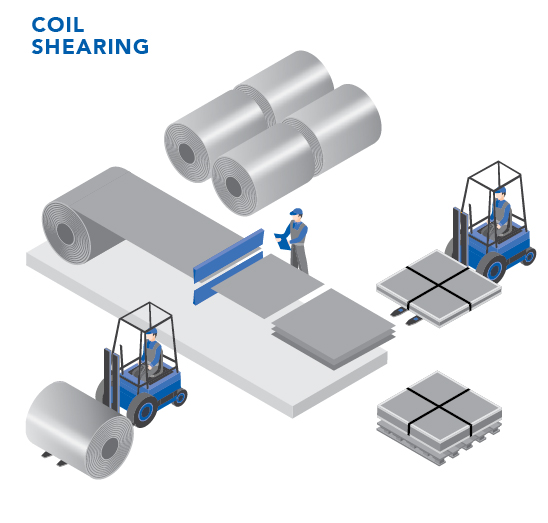

Shearing adalah proses pemotongan coil baja menjadi lembaran plate baja sesuai ukuran tertentu.
Spec Material | SPCC-SD, GI, SPHC, EG, SPHC-PO |
Thickness | 0,30 mm - 3,20 mm (exc. Stainless max. 1,50 mm) |
Width of Mother Coil | 500 mm - 1.600 mm for thickness 0,30 mm - 3,20 mm 700 mm - 1.600 mm for thickness 1,00 mm - 6,00 mm |
ID of Coil | 508 / 610 / 720 / 760 |
OD of Coil | 900 mm - 2.000 mm |
Coil Weight Max. | 20 MT |
Length of Sheet | 300 mm - 4.000 mm for thickness 0,30 mm - 3,20 mm |
Width of Sheet | 600 mm - 6.000 mm for thickness 1,00 mm - 6,00 mm 40 mm - 1.000 mm for down shear machine |
Length Tolerance | ± 0,30 mm - 0,50 mm for thickness 0,30 mm - 3,20 mm ± 1,00 mm for thickness > 3,20 mm - 6,00 mm |
Diagonal Tolerance | ± 0,50 mm - 1,00 mm for thickness 0,30 mm - 3,20 mm ± 1,00 mm - 2,000 mm for thickness 1,00 mm - 6,00 mm |
